一介绍

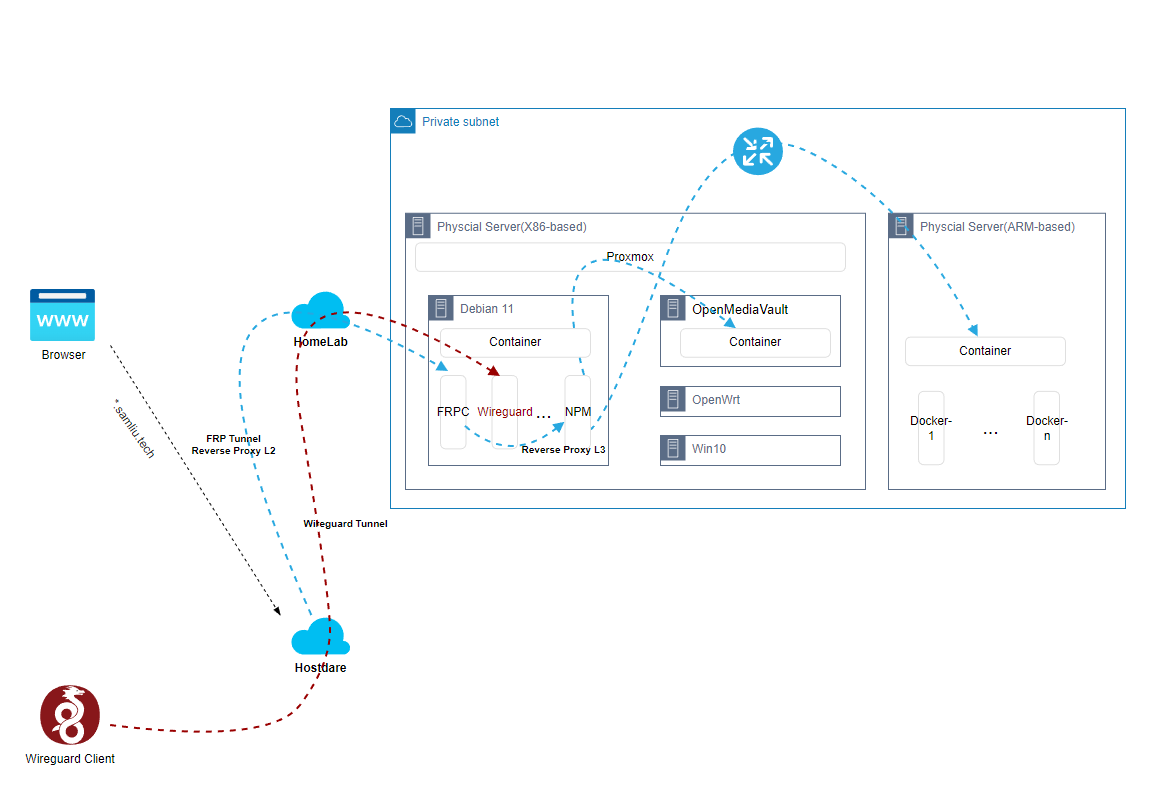

关于 “架构设计与实现-High-level design”篇章里，云下部分，本地环境的实现包括 Proxmox 及其数个不同功能的 VM ，以及 VM 内的众多不同功能的 Docker 。

如下：

Proxmox ，安装及配置等等，功能众多而杂，可以类比 Vsphere
Debian VM ，这里作为主力 Linux 使用，有点 Ubuntu 的稳定版分支的意思，适合做生产环境下的系统
OpenMediaVault,一个开源轻量的 NAS 系统
OpenWrt,作为代理服务，供其他服务使用，非透明代理
Win10 ，一个图形化的工作台
一个树莓派，裸机运行，跑了多个 ARM 架构的 Docker 应用

请输入图片描述

二部署

1 Proxmox ，安装及配置

安装后，让能跑起来还是比较简单，这里说明下网络相关的配置，以我的环境为例，我是使用 wireless 连接网络。 Proxmox 7 (Debian 11 Bullseye) – How to setup WiFi network

[email protected]:~# cat /etc/network/interfaces # network interface settings; autogenerated # Please do NOT modify this file directly, unless you know what # you're doing. # # If you want to manage parts of the network configuration manually, # please utilize the 'source' or 'source-directory' directives to do # so. # PVE will preserve these directives, but will NOT read its network # configuration from sourced files, so do not attempt to move any of # the PVE managed interfaces into external files! auto lo iface lo inet loopback iface enp1s0 inet manual auto wlp0s20f3 iface wlp0s20f3 inet dhcp wpa-conf /etc/wpa_supplicant/wpa_supplicant.conf auto vmbr0 iface vmbr0 inet static address 192.168.88.78/24 bridge-ports enp1s0 bridge-stp off bridge-fd 0 auto vmbr999 iface vmbr999 inet static address 100.64.0.100/10 bridge-ports none bridge-stp off bridge-fd 0 100.64.0.0~100.127.255.255 post-up echo 1 > /proc/sys/net/ipv4/ip_forward post-up iptables -P INPUT ACCEPT post-up iptables -P FORWARD ACCEPT post-up iptables -t nat -A POSTROUTING -s '100.64.0.0/10' -o wlp0s20f3 -j MASQUERADE post-down iptables -t nat -D POSTROUTING -s '100.64.0.0/10' -o wlp0s20f3 -j MASQUERADE post-up iptables -t nat -A POSTROUTING -s '192.168.88.0/24' -o wlp0s20f3 -j MASQUERADE post-down iptables -t nat -D POSTROUTING -s '192.168.88.0/24' -o wlp0s20f3 -j MASQUERADE #post-up iptables -t nat -A PREROUTING -d 10.0.0.111 -j DNAT --to-destination 100.64.0.111 #post-up iptables -t nat -A PREROUTING -d 10.0.0.1 -j DNAT --to-destination 100.64.0.1 #post-up iptables -t nat -A PREROUTING -d 10.0.0.2 -j DNAT --to-destination 100.64.0.2 #post-up iptables -t nat -A PREROUTING -d 10.0.0.3 -j DNAT --to-destination 100.64.0.3 #post-up iptables -t nat -A PREROUTING -d 10.0.0.10 -j DNAT --to-destination 100.64.0.10 #post-down iptables -t nat -A PREROUTING -d 10.0.0.111 -j DNAT --to-destination 100.64.0.111 #post-down iptables -t nat -A PREROUTING -d 10.0.0.1 -j DNAT --to-destination 100.64.0.1 #post-down iptables -t nat -A PREROUTING -d 10.0.0.2 -j DNAT --to-destination 100.64.0.2 #post-down iptables -t nat -A PREROUTING -d 10.0.0.3 -j DNAT --to-destination 100.64.0.3 #post-down iptables -t nat -A PREROUTING -d 10.0.0.10 -j DNAT --to-destination 100.64.0.10 post-up iptables -t nat -A PREROUTING -i wlp0s20f3 -p tcp --dport 3389 -j DNAT --to 100.64.0.111:3389 post-down iptables -t nat -D PREROUTING -i wlp0s20f3 -p tcp --dport 3389 -j DNAT --to 100.64.0.111:3389 post-up iptables -t nat -A PREROUTING -i wlp0s20f3 -p tcp --dport 445 -j DNAT --to 100.64.0.2:445 post-down iptables -t nat -D PREROUTING -i wlp0s20f3 -p tcp --dport 445 -j DNAT --to 100.64.0.2:445

[scode type="blue"]配置逻辑：

无线网卡 wlp0s20f3 作为网关，通过前面配置的 wpa_supplicant 服务，连接家里 WiFi 网络
有线网卡是 enp1s0 ，桥接到 vmbr0 虚拟交换机
另一个虚拟交换机 vmbr999 ，用于连接其他 VM 网卡
其他虚拟网络网段配置源 NAT ，用于访问互联网
配置针对无线网卡 wlp0s20f3 的 NAT Server ，用于从外部网络方便直接访问 VM

[/scode]

2 Debian VM

这个 VM 是主力 Linux 系统，有几个重要的应用，docker 安装的

FRP Client ，用于连接到云上主机，建立 FRP tunnel ，充当二级反向代理

docker run --restart=always --network host -d -v /root/frpc_free_terminal.ini:/etc/frp/frpc.ini --name mele3q_frpc_free_terminal snowdreamtech/frpc
[email protected]:~$ more frpc_free.ini
[common]
server_addr = xxx.samliu.tech
server_port = 1234
token = xxxxxooooo
穿透需要 Web 访问的内网服务,例如群晖 NAS DSM 的管理界面.
[.samliu.tech]
type = http
local_ip = 100.64.0.2
local_port = 80
custom_domains = .samliu.tech
subdomain = blog
[Wireguard]
type = udp
local_ip = 100.64.0.3
local_port = 51820
remote_port = 9853

Nginx Management Proxy(NPM)，充当三级反向代理，转发到真正的后端服务

version: "3" services: app: image: 'jc21/nginx-proxy-manager:latest' restart: unless-stopped ports: # These ports are in format <host-port>:<container-port> - '80:80' # Public HTTP Port - '443:443' # Public HTTPS Port - '81:81' # Admin Web Port # Add any other Stream port you want to expose # - '21:21' # FTP # Uncomment the next line if you uncomment anything in the section # environment: # Uncomment this if you want to change the location of # the SQLite DB file within the container # DB_SQLITE_FILE: "/data/database.sqlite" # Uncomment this if IPv6 is not enabled on your host # DISABLE_IPV6: 'true' volumes: - ./data:/data - ./letsencrypt:/etc/letsencrypt

Next-terminal, 基于 web 的设备管理平台，支持 RDP,SSH 等等

[post cid="1294" /]

version: '3.3'
services:
  guacd:
    image: dushixiang/guacd:latest
    volumes:
      - /home/sam/next-terminal/data:/usr/local/next-terminal/data
    restart:
          always
  next-terminal:
    image: dushixiang/next-terminal:latest
    environment:
      DB: sqlite
      GUACD_HOSTNAME: guacd
      GUACD_PORT: 4822
    ports:
      - "8088:8088"
    volumes:
      - /etc/localtime:/etc/localtime
      - /home/sam/next-terminal/data:/usr/local/next-terminal/data
    restart:
      always

Wireguard, 下一代 VPN 解决方案，支持 remote VPN 和 Site-to-site VPN,连接到内网，便于管理

linuxserver/docker-wireguard

version: "2.1"
services:
  wireguard:
    image: lscr.io/linuxserver/wireguard:latest
    container_name: wireguard
    cap_add:
      - NET_ADMIN
      - SYS_MODULE
    environment:
      - PUID=1000
      - PGID=1000
      - TZ=Asia/Shanghai
      - SERVERURL=1.1.1.1 #optional
      - SERVERPORT=9853 #optional
      - PEERS=3 #optional
      - PEERDNS=114.114.114.114 #optional
      - INTERNAL_SUBNET=172.16.0.0/24 #optional
      - ALLOWEDIPS=100.64.0.0/10, 192.168.0.0/16, 172.16.0.0/12 #optional
      - PERSISTENTKEEPALIVE_PEERS=all #optional
      - LOG_CONFS=true #optional
    volumes:
      - /home/sam/wireguard-appdata/config:/config
      - /lib/modules:/lib/modules #optional
    ports:
      - 51820:51820/udp
    sysctls:
      - net.ipv4.conf.all.src_valid_mark=1
    restart: unless-stopped
